As resource demands and bandwidth speeds in many of today’s network infrastructures continue to increase, many network administrators believe that NetFlow sampling is the only way to deal with the high flow volume sent across the network. In fact, setting a NetFlow sample rate of 1 in 100 can cut flow volumes as much as 50%.

This sounds nice, but it is hardly the answer. When you sample flows, you only see a percentage of the traffic, limiting visibility. Sampling technology simply does not provide the full story. It is like only reading every 100th word in a novel. At the end of the story you have a vague outline of what happened and who the characters were, but little more. Security analysts, who use flows for network security forensics and incident response, don’t want 1 out of every 100 packets; they want and need one out of every one.

Let’s look at a way that can help you avoid NetFlow sampling

By changing the flow aggregation method on the NetFlow cache table, you can cut down flow volume and still get 100% traffic accountability.

We often do this with customers’ NetFlow configurations on the Catalyst 6500 platform by using different options available on the MLS FLOW command.

The problem is that as the aggregation method widens, you begin to lose individual flow and application visibility.

Enter Flexible NetFlow

Traditional NetFlow aggregates flows based on a standard tuple—source IP, destination IP, source port, destination port, protocol, and input interface. In other words, all these elements must match to aggregate, or a new flow record is created.

Flexible NetFlow lets you create your own flow records that can contain specific key fields that govern the aggregation scheme. The problem, just like what we see on the 6500, is that you lose that individual flow visibility the wider the key field mask is.

But there is a cool way to get around this: export NBAR application information.

NBAR is a process by which the router looks inside the packets and identifies applications by their layer 7 names. So, setting up the aggregation method to use the NBAR application name rather than source or destination port references can dramatically cut down on flows, without losing any of the true traffic statistics.

The reduction in flows is largely due to tracking application conversations instead of connections when only using NBAR. The different key fields mean different aggregation in the flow cache.

Example: If there were two SSL connections to the same web server in the same minute, the NBAR template will generate 1 flow record because both flows will match the same key fields. The one with source and destination ports as key fields will create two flow records as long as the connections have different ephemeral ports to make the connection.

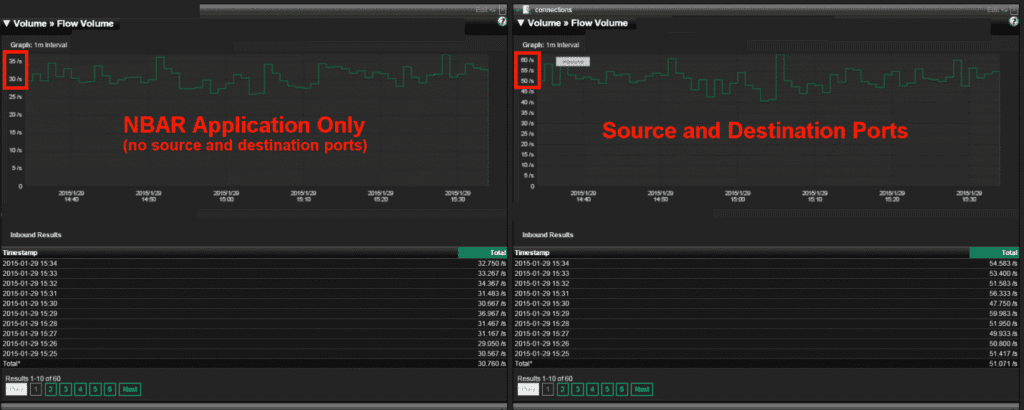

Look at the drop in flow volumes from the exact same traffic streams where the two different aggregation methods are deployed.

This is how each flow record was set up. Notice that in the first NetFlow record we are aggregating the flow records on match statements that represent a standard NetFlow tuple. Any time a flow contains a different source or destination port, a new flow record entry is added to the cache table.

flow record port-test-record
match ipv4 protocol
match ipv4 source address
match ipv4 destination address
match transport source-port
match transport destination-port
match interface input
match interface output
collect transport tcp flags
collect counter bytes
collect counter packets
collect timestamp sys-uptime first
collect timestamp sys-uptime last

The NetFlow record below will yield the same traffic monitoring numbers, but because we are matching on the NBAR application name and not the individual source/destination ports, the number of aggregated cache table entries is considerably less.

flow record nbar-test-record
match ipv4 protocol
match ipv4 source address
match ipv4 source prefix
match ipv4 destination address
match interface input
match interface output
match application name
collect transport tcp flags
collect counter bytes
collect counter packets
collect timestamp sys-uptime first
collect timestamp sys-uptime last

This flow volume report tells the story

How to avoid NetFlow sampling

In short, we are changing how the aggregation works in the flow cache. This does eliminate the ability to look at each connection in a conversation, but it may be worth it in cases where people are less interested in doing that and need full bandwidth accounting. If you are currently sampling NetFlow and would like better network traffic accounting, we can help you with your NetFlow configuration.
