FatPipe WARP: NetFlow Support

Just discovered, FatPipe NetFlow support is available on FatPipe’s WARP 5.2 high-speed clustering device. We are in the process of checking out this export to see if they are exporting any additional information beyond the NetFlow v5 tuple. I’m sure the developers at FatPipe are discussing exporting IPFIX to report on their patent pending SmartDNS and Inbound line failover, as well as their WAN optimization. As WARP is currently exporting NetFlow v5, Scrutinizer supports their export.

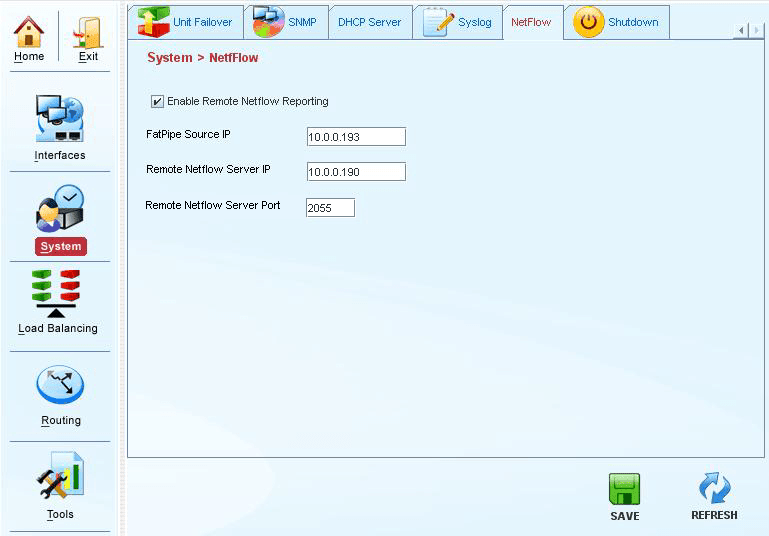

WAN Optimization NetFlow Config FatPipe WARP Appliance
Follow these simple directions to export NetFlow to your Scrutinizer installation today.

Enable Remote Netflow Reporting
If this is enabled, the source IP, Remote Netflow server IP and port number can be configured.

Fatpipe Source IP The Fatpipe LAN IP.

Remote Netflow Server IP
The IP of the remote server in which the NetFlow is configured.

Remote Netflow Server Port
The remote NetFlow server port number.

Don’t forget to SAVE
